RoseCase ProSecure · Small caseRCPS 140
IP67 waterproof hard case
IP67RCPS 140 in brief
The RCPS 140 is an IP67 waterproof protective case from the RoseCase ProSecure range (Rose Plastic, Germany): 1.3 L, inner 212 × 140 × 47 mm, 0.32 kg, supplied in India with custom foam and branding by Candid Medpack, Ahmedabad.
- IP67 waterproof & dustproof
- Pressure equalisation valve
- Padlock eyelets
Authorised partner · stock & foam workshop in Ahmedabad · GST invoiceWhat the RCPS 140 is built with

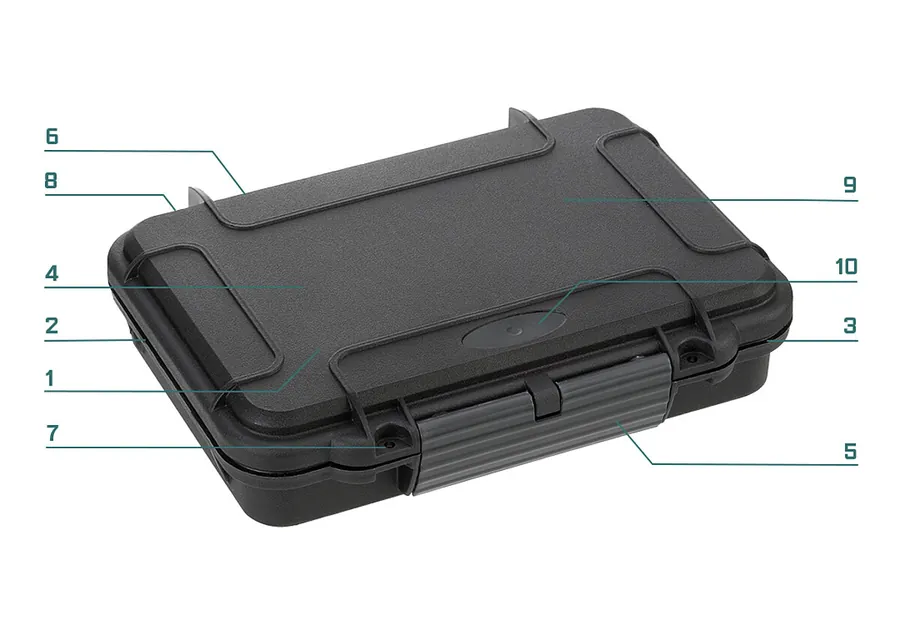

Numbers match the diagram. Hover a feature to see it on the case.
- Extra-thick walls1
Extremely impact-resistant thanks to extra-thick walls – built for the toughest conditions
1 - Sealed lid2
Sealed lid for maximum protection against the ingress of dust, water, and moisture
2 - Pressure valve3
Automatic pressure equalization valve prevents vacuum formation and protects the contents from air pressure changes
3 - Thermally stable4
Thermally stable – even when exposed to extreme temperatures
4 - Two-stage snap locks5
Easy-open, two-stage snap closures for maximum security
5 - Corrosion-proof pins6
Corrosion-resistant nylon pins for long-lasting durability
6 - Padlock eyelets7
Padlock eyelets for added security during transport
7 - Full-length hinge8
Sturdy full-length hinge for enhanced structural integrity
8 - Foam & divider options9
Wide range of interior options available – including custom foam materials, pick-and-pluck foam, convoluted foam, or divider systems for flexible organization
9 - Print & label branding10
Branding options available via printing or labeling
10
Each tile flips to show the manufacturer's wording; the number on the tile is the number on the diagram.
RCPS 140 specifications
Manufacturer data · W × H × D in millimetres- Model
- RCPS 140
- Range
- RoseCase ProSecure · Small cases
- Inner dimensions
- 212 × 140 × 47 mm
- Outer dimensions
- 230 × 175 × 53 mm
- Inner depth
- Base 33 mm · Lid 14 mm
- Volume
- 1.3 L
- Weight (empty)
- 0.32 kg
- Temperature range
- -10°C to 80°C
- Packaging unit
- 12 per carton
- Materials
- Polypropylene (PP), Nylon
- Stock colours
- black
- Foam options
- Convoluted foam, Cubed foam, Customized foam; custom-cut by Candid Medpack
- Certifications
- IP67dust-tight; immersion to 1 m for 30 min
- Branding
- Screen or pad printing, labels; custom shell and closure colours on request
Official PDF datasheet or certification manual? Ask us — we send it with your quotation.
Customise the RCPS 140
Fitted and branded in Ahmedabad, delivered as a finished kit.Custom-cut foam
CNC-cut or thermoformed inserts around your items.
Printing & labels
Logo and handling text on the shell or lid.
Colours & accessories
Other colours for larger runs. Straps, dividers, pouches, padlocks.
RCPS 140 questions, answered
What are the dimensions and weight of the RCPS 140?
The RCPS 140 measures 212 × 140 × 47 mm inside and 230 × 175 × 53 mm outside (W × H × D). The base is 33 mm deep and the lid 14 mm. Usable volume is 1.3 L and the empty case weighs 0.32 kg.
Is the RCPS 140 waterproof?

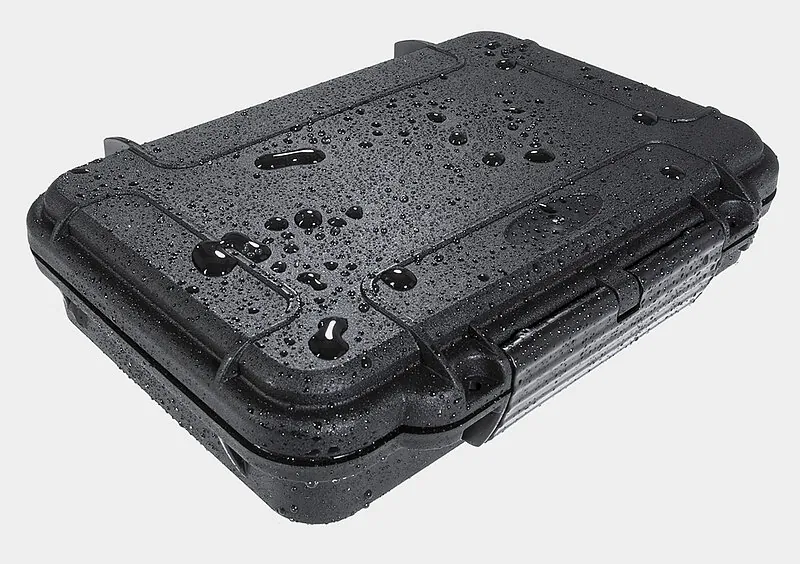

Yes. The RCPS 140 is rated IP67: dust-tight and protected against temporary immersion in water (1 m for 30 minutes). The lid seal keeps out water, dust and moisture, and an automatic pressure equalisation valve prevents a vacuum forming after altitude or temperature changes.
Can I get custom foam for the RCPS 140?

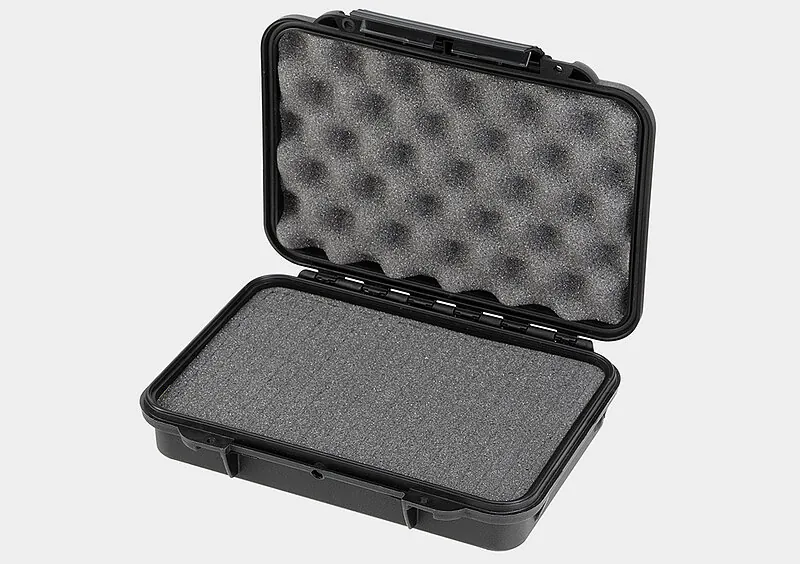

Yes. The RCPS 140 can be supplied empty or with convoluted foam, cubed foam or customized foam. Candid Medpack designs and cuts customised foam in Ahmedabad, so instruments, devices or tools sit in a precise cavity; send us the items or their drawings and we prototype the insert.
What colours and branding options are available for the RCPS 140?
The RCPS 140 is stocked in black. The surface takes screen or pad printing and labels, so your logo, product name or handling instructions can go directly on the case.
Need the RCPS 140 with foam cut for your equipment?
Send the items or drawings; we confirm fit, propose the insert and quote from stock in India.
