RoseCase ErgoLine · Small caseRCEL 155 SM
Ergonomic presentation and sales case
RCEL 155 SM in brief
The RCEL 155 SM is an ergonomic presentation and sales case from the RoseCase ErgoLine range (Rose Plastic, Germany): 1.5 L, inner 225 × 155 × 38 mm, 0.23 kg, supplied in India with custom foam and branding by Candid Medpack, Ahmedabad.
- Transparent lid option
- 100% recycled option
- Printable high-gloss surface
Authorised partner · stock & foam workshop in Ahmedabad · GST invoiceWhat the RCEL 155 SM is built with

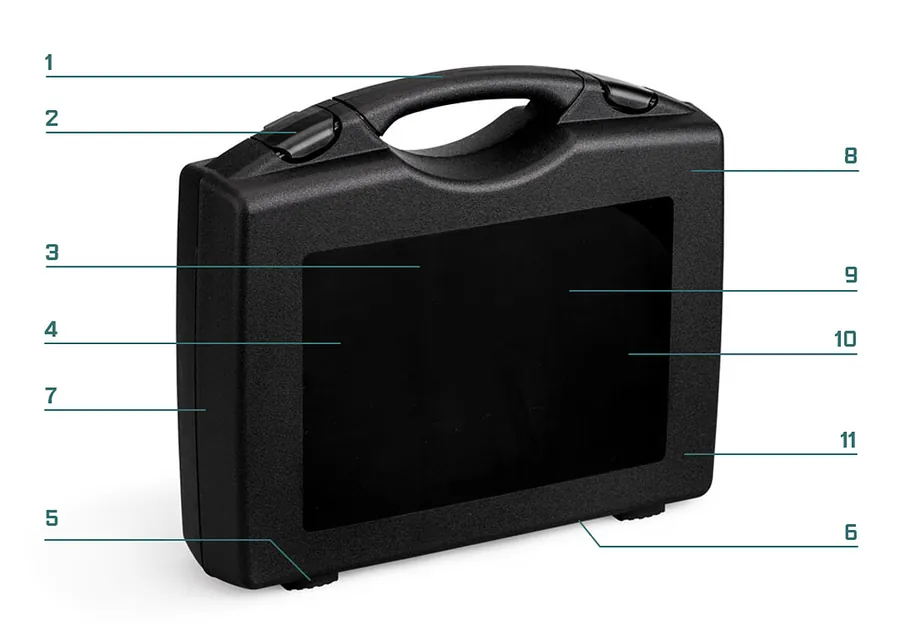

Numbers match the diagram. Hover a feature to see it on the case.
- Ergonomic handle1
ergonomic handle
1 - Swivel closures2
durable closures, rotatable 90°, seamlessly integrated into the case design
2 - Print & label branding3
smooth, high-gloss surface – ideal for custom printing, engraving, or labeling
3 - Textured finish option4
optional fully textured surface available upon request
4 - Integrated feet5
low-profile feet integrated into the case contour
5 - Concealed hinges6
concealed internal hinges
6 - Wide colour range7
available in a wide range of colors – including transparent options
7 - Custom colour combos8
custom color combinations for case shells and closures possible
8 - Foam & divider options9
matching foam materials for every case size – standard and customized versions available
9 - Transparent lid option10
showcase your products with maximum impact using transparent lids
10 - 100% recycled option11
also available in 100% recycled plastic
11
Each tile flips to show the manufacturer's wording; the number on the tile is the number on the diagram.
RCEL 155 SM specifications
Manufacturer data · W × H × D in millimetres- Model
- RCEL 155 SM
- Range
- RoseCase ErgoLine · Small cases
- Inner dimensions
- 225 × 155 × 38 mm
- Outer dimensions
- 244 × 207 × 44 mm
- Inner depth
- Base 27 mm · Lid 11 mm
- Volume
- 1.5 L
- Weight (empty)
- 0.23 kg
- Packaging unit
- 20 per carton
- Materials
- Polypropylene (PP), Polyamide (PA)
- Stock colours
- black 01, transparent, red 19, blue 30, gray 14 (+24 on request)
- Foam options
- Convoluted foam, Cubed foam, Customized foam, Flat foam; custom-cut by Candid Medpack
- Size class
- Small cases (< 275 mm wide)
- Certifications
- None claimed — not an IP-rated case
- Branding
- Screen or pad printing, labels; custom shell and closure colours on request
Official PDF datasheet or certification manual? Ask us — we send it with your quotation.
Customise the RCEL 155 SM
Fitted and branded in Ahmedabad, delivered as a finished kit.Custom-cut foam
CNC-cut or thermoformed inserts around your items.
Printing & labels
Logo and handling text on the shell or lid.
Colours & accessories
24 shell colours for larger runs. Straps, dividers, pouches, padlocks.
ErgoLine sizes near the RCEL 155 SM
All 19 sizes
RCEL 155 SM questions, answered
What are the dimensions and weight of the RCEL 155 SM?
The RCEL 155 SM measures 225 × 155 × 38 mm inside and 244 × 207 × 44 mm outside (W × H × D). The base is 27 mm deep and the lid 11 mm. Usable volume is 1.5 L and the empty case weighs 0.23 kg.
Is the RCEL 155 SM waterproof?
No. The RCEL 155 SM is an ergonomic presentation and sales case and is not IP-rated. If you need a sealed, waterproof case, choose a RoseCase ProSecure model of a similar size; we can help you match the inner dimensions.
Can I get custom foam for the RCEL 155 SM?
Yes. The RCEL 155 SM can be supplied empty or with convoluted foam, cubed foam, customized foam or flat foam. Candid Medpack designs and cuts customised foam in Ahmedabad, so instruments, devices or tools sit in a precise cavity; send us the items or their drawings and we prototype the insert.
What colours and branding options are available for the RCEL 155 SM?
The RCEL 155 SM is stocked in black 01, transparent, red 19, blue 30, gray 14. A further 24 colours are available on request for larger runs, and shells and closures can be combined in different colours. The surface takes screen or pad printing and labels, so your logo, product name or handling instructions can go directly on the case.
Need the RCEL 155 SM with foam cut for your equipment?
Send the items or drawings; we confirm fit, propose the insert and quote from stock in India.
